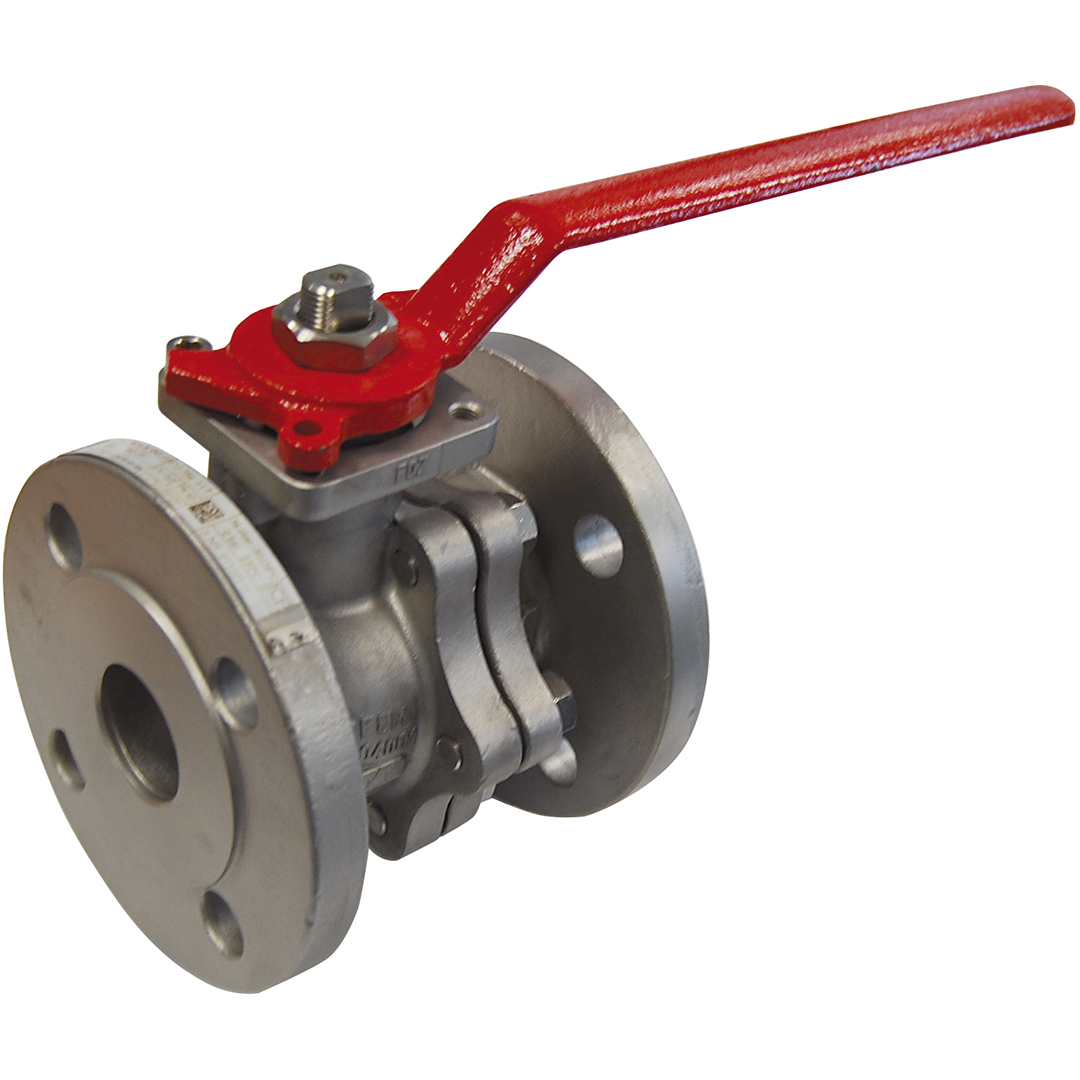

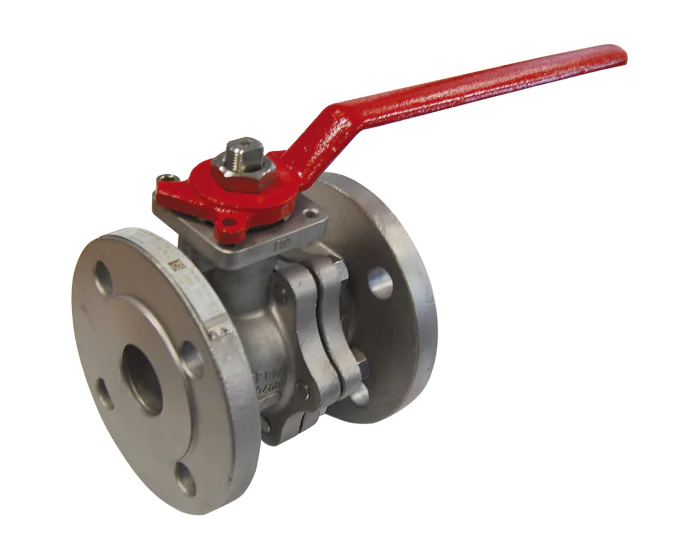

Stainless steel ball valve 757 2 piece body RF ANSI150 HT 1/2''
€112.36
(excl. btw)
The 757 series ball valve is a split-body model with Class 150 flanges, made of stainless steel with a TFM 1600 PTFE seat, fire safe and resistant to high temperatures. For chemical, petrochemical industries and hydraulic installations.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 1983 - ISO 17292 - ASME B16.34
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
EN face-to-face standard
EN 558 Series 3
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 3. ASME B16.10
Brand
ICP VALVES
Tightness test standard
EN 12266-1 Rate A. API 598
Stem sealing material
Graphite gland packing
Antistatic device
Yes
Steam
Yes
Degassing hole
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class CH
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316
Lockable
Yes
Square, star (mm)
MEP M10x7
ATEX compatible
Yes
Torque (Nm)
6
DN
DN15 - 1/2''
Face to Face (mm)
1470.0
Fluid
Hydrocarbons. gas
Kv (m³/h)
20
Body material
Stainless steel CF8M (1.4408)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
20
Connections
Flanged #150 PN20
Seats
TFM 1600
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
230
TS min (°C)
-50
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Ductile iron
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6564
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2''
757015
S1006784
€112.36
(excl. btw)
add to cart
6565
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4''
757020
S1006785
€124.96
(excl. btw)
add to cart
6566
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN25 - 1''
757025
S1006786
€157.51
(excl. btw)
add to cart
6567
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2
757040
S1006787
€292.96
(excl. btw)
add to cart
6568
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN50 - 2''
757050
S1006788
€381.17
(excl. btw)
add to cart
6569
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2
757065
S1006789
€534.47
(excl. btw)
add to cart
6570
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN80 - 3''
757080
S1006790
€695.13
(excl. btw)
add to cart
6571
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN100 - 4''
757100
S1006791
€1,058.44
(excl. btw)
add to cart
6572
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN150 - 6''
757150
S1006792
€2,290.16
(excl. btw)
add to cart
6573
Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN200 - 8''
757200
S1006793
€4,287.36
(excl. btw)
add to cart
